Illuminated LED Signs
Stand out with an illuminated projecting sign or wall mounted LED signs.
LED signs and other types of backlit illuminated signs are the perfect way to elevate your business. Ideal for businesses big and small alike, one of our office or illuminated shop signs is an effective way to promote your business from the exterior or simply to improve the readability of your business name or logo.
Not sure what you need? Looking to discuss a project? Volume or trade enquiry?
What Are Illuminated LED Signs?
An illuminated LED sign is any business sign that carries its own light source, using LED modules rather than the glass neon tubing or fluorescent lamps that older signage relied on. You might also see them called light up signs, backlit signs, electric signs or simply LED signage, and the terms are used more or less interchangeably in the trade.
What they all share is the reason businesses buy them. A shop sign that's only readable in daylight is working for a fraction of the hours you're trading. Add illumination and the same sign carries your name through winter afternoons, evening trade and the whole time your premises sit empty overnight. A light up sign earns its keep in the hours a printed panel cannot.
Custom LED signs and custom light up signs suit any business, and we make illuminated signs for businesses of every size, from a single cafe to a national rollout - whether you're trying to attract people off the street alongside pavement signs or outdoor signs, or creating a welcoming atmosphere indoors with a restaurant sign, pub sign or cafe sign.
What Types Of LED Sign Can I Choose From?
Illuminated signage is not one product, and the type you choose changes the look, the cost and where the sign can sensibly go. Below are the main options in our range, all available as custom backlit signs in your own colours, shapes and branding.

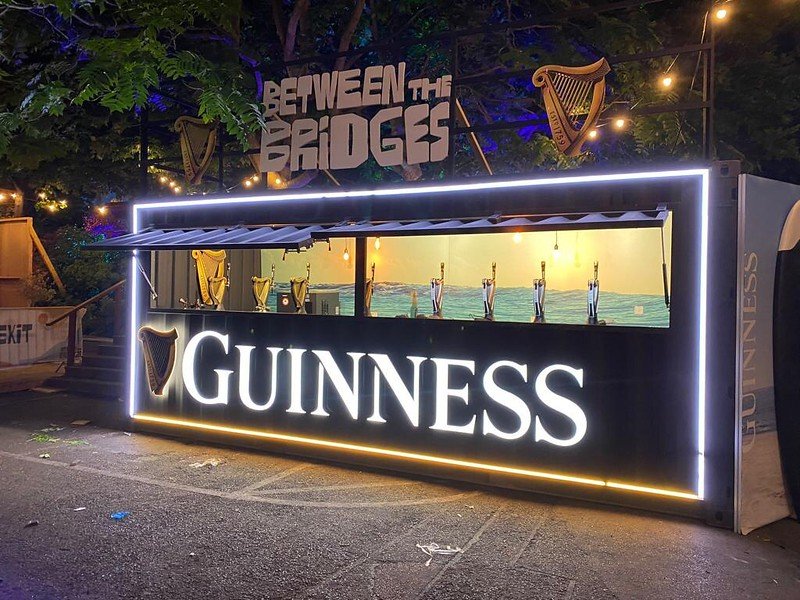

- Face-lit built-up letters - individual letters and shapes with an illuminated front face, so the light comes straight at the viewer. The classic high street fascia look, and the easiest to read from a distance.
- Edge-lit letters and logos - the light escapes around the edge of each letter rather than through the face, giving a softer halo effect against the wall behind. The usual choice for a backlit logo sign or LED logo sign indoors: reception areas, salons and hospitality interiors where a fascia-style sign would feel too loud.
- Illuminated tray signs - a single aluminium tray spanning the width of your fascia with the lettering cut or applied into it. The classic illuminated fascia sign, and the tidiest way to cover a wide frontage in one unit. If you're looking for an LED sign board for shop premises, this is almost always the product you mean.

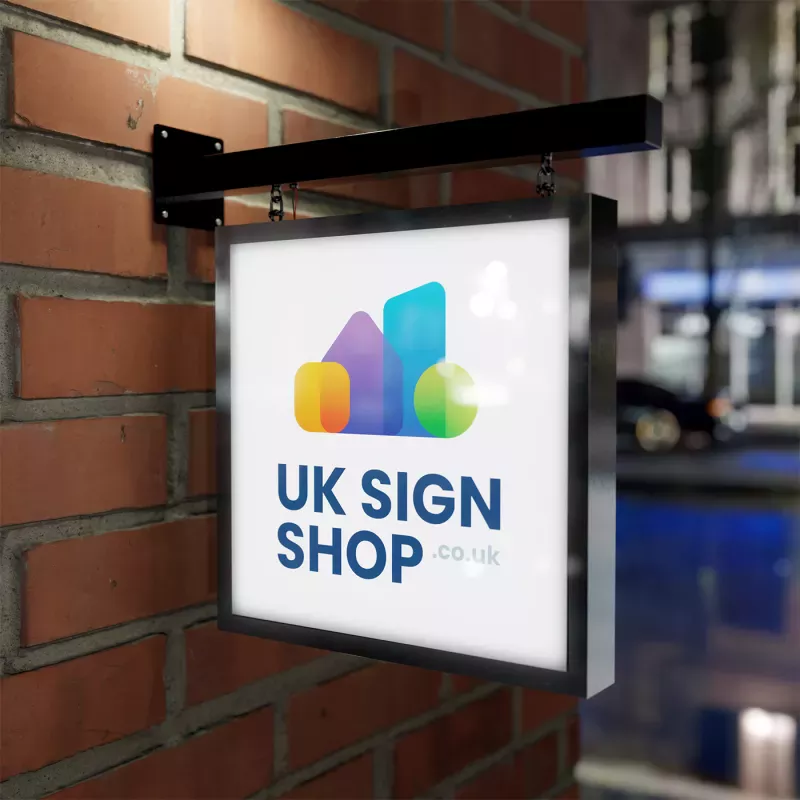

- Projecting lightboxes - double-sided illuminated signs mounted at right angles to the wall so they read to pedestrians coming from both directions. Available as circles, squares and rectangles, and a strong choice for a narrow shop front on a busy street where a flat fascia sign is only visible head-on.
- Stretch fabric lightboxes - a frameless tensioned fabric face over an edge-lit frame, giving a completely even, seamless glow with no visible fixings. Graphics can be swapped without replacing the unit, which makes them a strong choice for seasonal campaigns.
- Colour-changing LED letters - our HueWave LED™ range changes colour by remote control, so a single set of letters can suit different times of day, seasons or events.
- Freeform light logos - the TruShape Light Logo™ is cut to the outline of your actual brand mark rather than a standard shape, so an irregular logo doesn't have to sit inside a rectangle. If you want an LED logo sign rather than lettering, start here or with the edge-lit range.
Comparing The Main Types Of Illuminated Sign
Why Put An Illuminated Sign On Your Premises?
Light Up Signs Give You 24-Hour Recognition
A custom LED sign keeps working when the shop is shut. Because LED modules draw so little power, custom light up signs can stay on through the evening and overnight without the running cost that made older lit signage expensive to leave on.
Light up shop signs are particularly useful for late-closing retail, hospitality and anywhere a customer might be looking for you in the dark, and a lit frontage gives an empty unit an occupied look outside trading hours.
LED Signs For Better Visibility And Readability
A light up sign can be read further away and faster than a non-illuminated one, in dull weather as well as at night. With LED signage or other illuminated shop signs at your fingertips, your business becomes more visible amongst the competition - "seeing your name in lights" has never been more apt.
Contrast is what does the work: a lit face against a dark frontage separates your name from everything around it in a way that a printed panel cannot.
Custom LED Signs For Interior And Exterior Use
The versatility of our light up signs is another bonus. An LED wall sign works as well behind a reception desk as it does on a shop front, so your interior LED wall signs and your fascia can be specified from the same range and matched exactly.
Indoors, a backlit logo sign or edge-lit panel is a straightforward way to brand a reception area or meeting room without redecorating around it. Outdoors, our LED shop signs and LED signs for business are built into sealed housings to withstand the weather - the right call if you need an illuminated projecting sign for your building.
See the full wall signs range for indoor and outdoor options.
What Are LED Shop Signs Made From?
Our LED shop signs are built from the same short list of materials, chosen because they last outdoors rather than because they're cheap.
- Aluminium - trays, letter returns and most lightbox frames are aluminium, which does not rust and stays light enough to fix to a standard fascia without heavy structural work.
- Acrylic - most faces are light-diffusing acrylic, which spreads the LED output evenly across the whole surface instead of leaving visible hot spots over each module. It's also the reason a face-lit letter reads as a solid block of colour rather than a row of dots.
- LED modules - the LED sign lighting sits behind or beside the face rather than being visible. Individual modules can be replaced without scrapping the sign, which is what separates a repairable sign from a disposable one.
- Printed graphics - where a design can't be cut, it's printed on our digital printers using UV-stable inks and applied to the face.
Outdoor illuminated signs are supplied in sealed housings built for year-round UK conditions - rain, frost and UV exposure. Materials are chosen for longevity, not just cost, and every sign is individually checked by our team before it's packed.
How Much Power Does An LED Sign Use?
LED sign lights draw a small fraction of the power the fluorescent tubes and glass neon of older illuminated signs needed, and choosing LED light up signage over either cuts running costs sharply. That's why leaving a sign lit overnight is far less costly and doesn't have to be a decision that's agonised over. Published trade comparisons put a typical LED-lit shop sign at somewhere between a third and two thirds of the consumption of an equivalent neon one.
Running cost is only part of it. LED modules are typically rated for 50,000+ hours, which will outlast neon tubing several times over, and there's no gas tube to fracture, no ballast to fail and no specialist re-gassing when a section goes dark.
Do Illuminated Signs Need Planning Permission?
Often not, but the rules are tighter than for an unlit sign, so it's worth checking before you order. In England, an illuminated sign on your own business premises falls under Class 4 of the advertisement consent regulations, which grants deemed consent - meaning you can display it without applying, provided it stays inside the class limits. Non-illuminated fascia signs sit under the simpler Class 5 instead.
The Class 4 limits to check
- Size - a projecting illuminated sign is restricted to 0.75 square metres per face.
- Projection - it must not project more than one metre, or two thirds of the pavement width, whichever is less.
- Mounting height - the lowest part must sit at least 2.5 metres above the ground, and the top no higher than 4.6 metres or first-floor window level.
- Illumination - it must be static, with no flashing, scrolling or animation.
- Brightness - capped at 600 cd/m² for displays up to 10 square metres, or 300 cd/m² for anything larger.
Going beyond the limits
Exceed any of those limits and you'll need express advertisement consent from your local authority. A listed building may need listed building consent as well. The statutory decision period is eight weeks from validation, so factor that into your timings.
Signs inside the building
Interior signage is usually outside advertisement control altogether - a backlit logo sign behind an office desk needs no consent. The exemption is narrower than it sounds, though: an illuminated interior sign within a metre of a window or door, where it can be read from the street, is treated as an outdoor advertisement.
Check before you order
Our guide to planning permission for commercial signs covers the rules in full. As always, this is a general guide, and you should always check your local planning authority to see what is permitted at your business.
How UK Sign Shop LED Signs Compare
When comparing LED sign suppliers, the differences that matter most are the ones you notice six months after installation - not on delivery day. Here's what sets UK Sign Shop apart on the factors commercial buyers care about.
Product range
Many LED sign suppliers offer lightboxes and little else. The range set out above runs from face-lit and edge-lit letters through to freeform light logos and wooden light boxes, so you can match the sign to the brand rather than the other way around.
UK manufacturing and materials
Every sign is produced in-house in the UK using quality-checked components, from the LED modules to the aluminium housings. There's no third-party fulfilment or imported flat-pack assembly - you get a finished, tested sign ready to install.
Customisation
Bespoke LED signs are available in custom sizes, colours and finishes, and custom LED signage is what we build every day rather than a sideline. Whether you need a 60cm circular projecting lightbox for a cafe frontage or a full-width face-lit letter set for a corporate fascia, each custom LED sign is built to your specification with a full design proof before production begins.
Turnaround
We aim to get all orders delivered as quickly as possible while maintaining a high standard of quality, and fragile items are packed with particular care. Faster delivery options are available at checkout.
Why Choose UK Sign Shop For Illuminated Signage?
UK Sign Shop are specialists in creating custom LED signs and custom illuminated signs for businesses that work. Durable, reliable and visually appealing, our illuminated signs and LED shop signs are all carefully crafted by hand using the highest quality materials available, which we locally source where possible. Our illuminated signage is individually checked by our dedicated team before being shipped around the world, ready for an effortlessly easy installation process.
Every order includes a free artwork check before anything goes into production, and our design proofs mean you see exactly what you're getting before you commit. Custom LED signage for shops, offices and hospitality is the work we do every day.
If you're looking for domestic versions of our light up business signs, check out our range of illuminated house signs. For the wider commercial range, see our business signs, office signs and lightbox signs products.
LED Sign FAQs
How do UK Sign Shop LED signs compare to neon alternatives?
LED signs are more energy-efficient, longer-lasting, and significantly cheaper to run than traditional neon. A typical LED sign draws roughly a third to two thirds of the power of a neon equivalent, runs cooler, requires no gas tube replacements, and is easier to install. UK Sign Shop's HueWave LED™ range recreates the colour-changing visual effect of neon without the running costs or maintenance.
How long do LED signs last?
LED signs from UK Sign Shop use modules rated for 50,000+ hours of use - roughly 5 to 7 years of continuous, round-the-clock operation. In practice, most business signs are only illuminated during trading hours, so the effective lifespan is considerably longer. The aluminium and acrylic housings are built to withstand outdoor conditions year-round, and LED modules can be replaced individually if needed, extending the usable life of the sign further still.
Can I customise the size and colour of my LED sign?
Yes. Every custom LED sign in the range is made to order, so you can specify exact dimensions, colours, and finishes to match your brand. The design process includes a full-colour proof for approval before production starts. If you need a shape, size, or finish that isn't listed, the bespoke enquiry form connects you directly to the production team for a custom quotation.
Can LED signs be used outdoors in the UK?
Yes. Outdoor LED signs are supplied in sealed aluminium and acrylic housings designed for year-round exposure to rain, frost and UV. Double check the details on each of our products or get in touch with us if you're not sure what illuminated signs are suitable for your project.
Do I need planning permission for an illuminated shop sign?
Often not. An illuminated sign on your own business premises has deemed consent under Class 4 of the advertisement consent regulations in England, so no application is needed as long as it stays inside the class limits on size, projection, mounting height and brightness. If you exceed those limits or fall under other conditions, you may need express consent - always check with your local planning authority to see what rules might apply to you before buying.
Can you make an LED sign in the shape of my logo?
Yes. Alongside standard letters we make backlit logo signs and freeform LED logo signs cut to your actual brand mark, including the TruShape Light Logo™ for outlines that will not sit inside a rectangle.
