Product Details

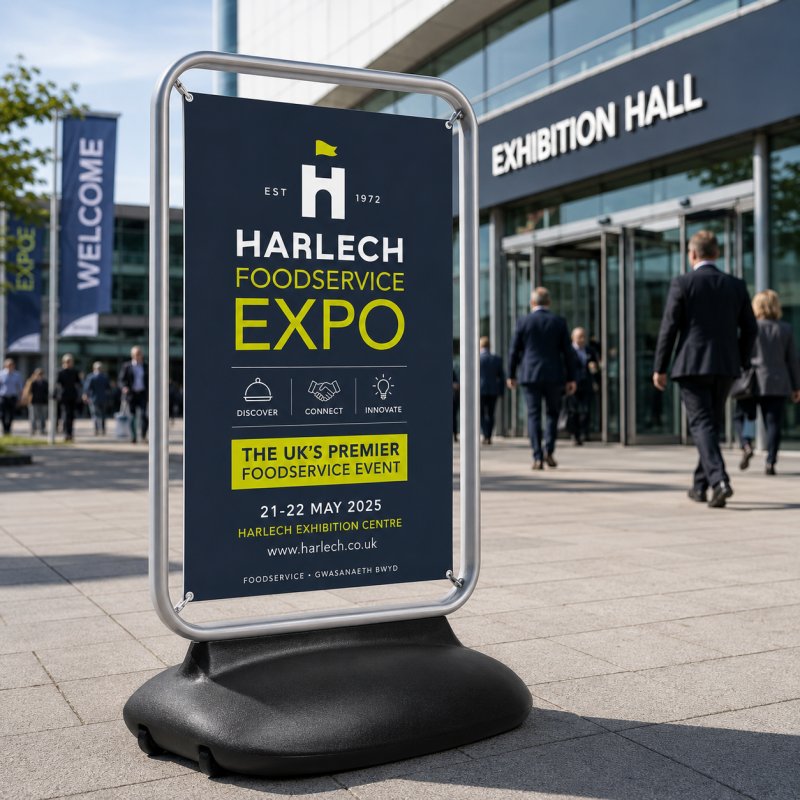

Powder-coated steel frame, silver finish as standard, built for permanent outdoor exposure with a clean, professional look.
Water-fillable base, fill it on-site to achieve optimum stability without heavy deliveries. Empty it for easy transport and storage.
Made from recycled polyethylene, the base is produced from recycled materials for a more sustainable display choice.
Built-in wheels and purpose-designed trolley, making it straightforward to move the unit into position around the site.
Elasticated banner ties included, securing your printed banner to the frame quickly and firmly at top and bottom.
Two sizes available, 30" x 40" and 40" x 60" to suit different locations and visibility requirements.
Custom colour frames available, minimum order quantities apply. Contact the UK Sign Shop team for details.
1 x Sentinel Banner steel frame (size as selected)
1 x water-fillable polyethylene base with built-in wheels
1 x purpose-designed trolley
Set of elasticated banner ties
The Sentinel Banner Frame is designed for outdoor use and should be positioned on a firm, level surface. Fill the base with water on-site using a standard hose to achieve the maximum stability rating. Do not attempt to move the unit with a full base, as the weight combined with the tall frame creates a significant tipping risk. Always empty or partially drain the base before repositioning, using the built-in wheels and trolley for short-distance movement.
The weights shown are for the frame and base empty. When the base is filled, the total weight increases substantially: approximately 97 kg for the 30" x 40" and 146 kg for the 40" x 60". Plan your location carefully.
Printed banner graphics are available separately through the UK Sign Shop product selector. Graphics are printed on 750gsm reinforced light-block PVC as standard, and are double-sided. Custom colour frames are available for minimum order quantities.
SizeDisplay Area (W x H)Overall Dimensions (W x H x D)Weight (empty)Weight (base full)
30" x 40"742 x 996mm935 x 1429 x 704mm25 kg97 kg 40" x 60"996 x 1504mm1171 x 1942 x 894mm38 kg146 kg
Remove all parts from packaging and lay them out on a clean, flat surface.
Assemble the steel frame uprights by connecting the sections together, following the joints and push-fit connections until each section is fully seated.
Insert the assembled frame into the spindle fitting on top of the base and secure according to the fixing method on your unit.
Attach the elasticated banner ties to the top bar of the frame through the fixing points, leaving them slack for now.
Connect the bottom banner ties to the base fixing points in the same way.
Wheel the assembled unit to your chosen outdoor location using the built-in trolley.
Fill the base with water through the filling cap until the base is fully loaded. Use a standard hose for convenience.
When your printed banner is ready, loop the top elasticated ties through the banner eyelets and stretch taut. Repeat at the bottom to hold the banner flat and upright.
